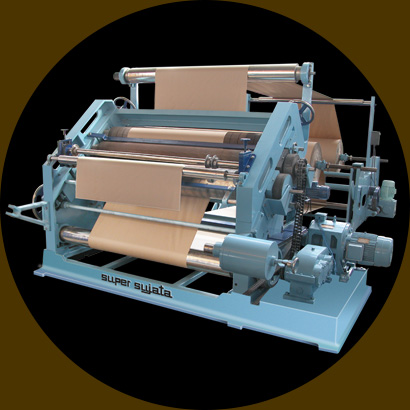

Bearing Mounted Oblique Type Corrugation Machine





For high production capacity and increased efficiency as compared to other models. Rolls are mounted on roller bearing for smooth running & longer life. The machine is provided with gum tray movement device which becomes operational when gum unit is disengaged from rollers. The machine is recommended to be used on steam heating or thermic fluid heating. App. output of machine is 110rtf/min.


Size Motor (H.P. Steam Req. Kg./Hr. Wt Approx. (MT.) Floor Space Heating Load
42" 7.0 200 4.5 7.0' x 16' 35
52" 9.5 300 5.0 8.5' x 16' 41
62" 9.5 300 5.5 9.5' x 16' 41
72" 12.0 400 6.0 10' x 17' 47
84" 14.5 400 6.5 11' x 18' 47
