High Speed Single Face Corrugation Machine offers high production capacity and increased efficiency as compared to other models. Rolls are mounted on roller bearings for smooth running and longer life. The machine is provided with gum tray movement device, which becomes operational when gum unit is disengaged from rollers. Centralized lubrication system.

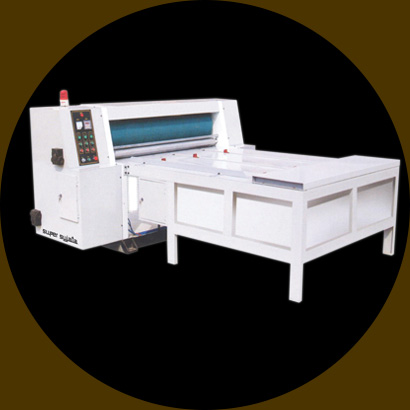

• This machine is with chain feeding system.
• Main Roll is made of high quality steel, thoroughly balanced and hard chrome plated.
• Soft coat automatic repair structure, could be repair 3-4 times, improve rubber mat work-life,
• Rubber Roll sleeve is made of imported high quality product, cutting time could be 8 million to 10 million time.
• Machine adopts electric, pneumatic, hydraulic part combination control for safe and high production.
• Machine can do slitting, creasing, slotting, corner cutting jobs in single stroke as per design of Rotary Die fitted on the machine Roll.
• Upper soft role adopts mechanical type or hydraulic to control horizontal micro-swing, swing area within 40 cm to releive wear of wrap and not influence die-cutting precision.
• Die-Cutting plate face adopts planetary gear structure, 360° electric adjustment (running and stop all could be digit control).
