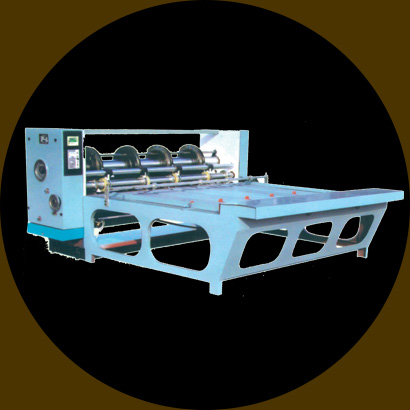

Combined Rotary Creasing, Slotting & Slitting Machine




This machine is used for cutting, creasing, slotting and corner cutting of corrugated board simultaneously. Four creasing, two side cutting, three slotting and one corner cutting heads are provided. The machine has a chain delivery arrangement. Slot depth is 12 inches. Maximum output is 60 sheets per minute.


Size
(mm)
Max. Board
Feeding
Max. Slot
Depth
Width of
Slot
Min. distance
of Slot
Speed
(Sheets/Min)
Power
(KW)
1470 x 2000 1450 x 1950 350 7.0 150 0-70 3
1470 x 2200 1450 x 2150 350 7.0 150 0-70 3
1470 x 2500 1450 x 2450 350 7.0 150 0-70 3
