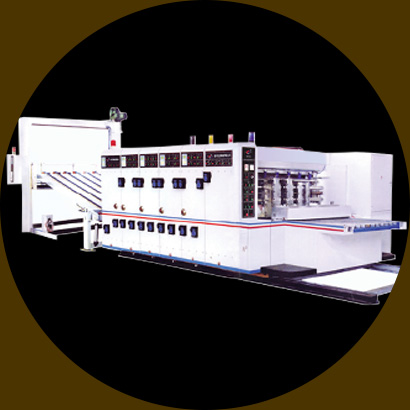

High Speed Water Based Ink Printing Slotting and Die Cutting Machine




  • As per the high requirement, dependability and safety, the whole set of machine is designed and manufactured. You can exchang the order forms quickly and operate conveniently.
  • Specially hardened and grinded gears of more than 60° hardness.
  • All the spaces can be hand or electrically adjusted. (Optional).
  • Digital inputting electric face or imported plc and multi-functional control of the touch screen is adopted. (Optional)


Max. Speed (pcs/min) 1300 x 2200 1300 x 2200 1300 x 2400
Max. Size of Paper Board (mm) 1300 x 2200 1300 x 2400 1300 x 2600
Min. Size of Paper Board (mm) 320 x 650 320 x 650 320 x 650
Max. Depth of Slot (mm) 320 320 320
Max. thickness of Paper Board (mm) 12 12 12
Max. Printing Area (mm) 1300x2000 1300x2200 1300x2400
Thickness of Standard Printing Plate (mm) 6 6 6
