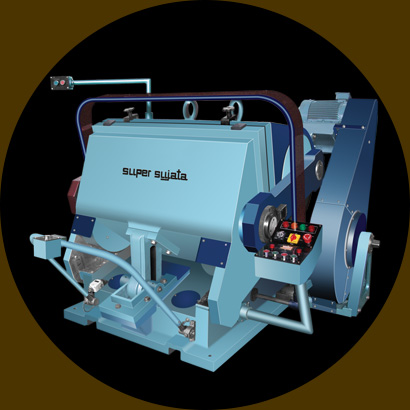

Platen Punching Machine

Platen Die Punching is designed for heavy jobs of Cutting, Creasing and Embossing of Paper, Linoleum, Card Board, Corrugated Board, Plastic & PVC material etc. Machine is with Electro-megnetic Clutch & Brake, Dwell Timing Device, Electric Impression Counter, Safety guards for opertor's safety, Circuit Locking & Circuit Breaker.

Size	Platen Size	Impr/ Hr	Power (H.P.)	Floor Space	Wt Approx. (MT.)
20" x 26"	23" x 29"	2000	3.0	60" x 45"	2.7
20" x 30"	23" x 33"	2000	3.0	60" x 51"	3.0
22" x 32"	25" x 35"	1800	5.0	62" x 53"	3.4
25" x 37"	28" x 40"	1800	5.0	65" x 55"	4.0
32" x 42"	36" x 46"	1500	7.5	77" x 75"	7.5
36" x 50"	40" x 54"	1200	7.5	77" x 75"	7.5
42" x 62"	46" x 66"	1000	10.0	84" x 90"	10.0
48" x 68"	52" x 72"	900	15.0	88" x 98"	11.5
51" x 81"	55" x 85"	700	15.0	94" x 121"	15.5
